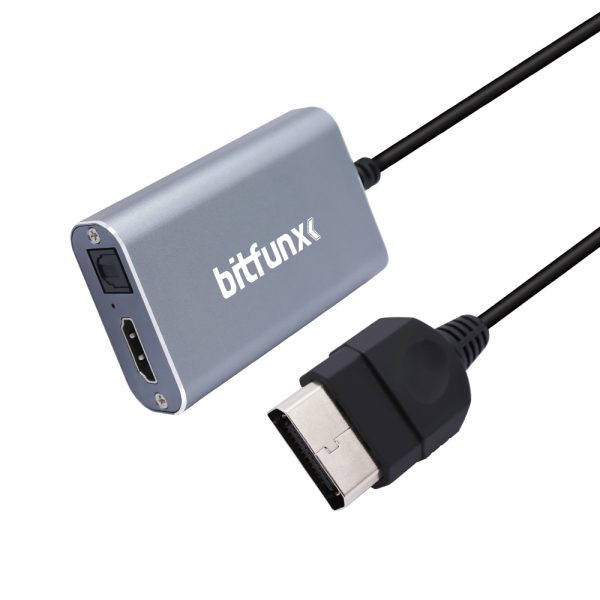

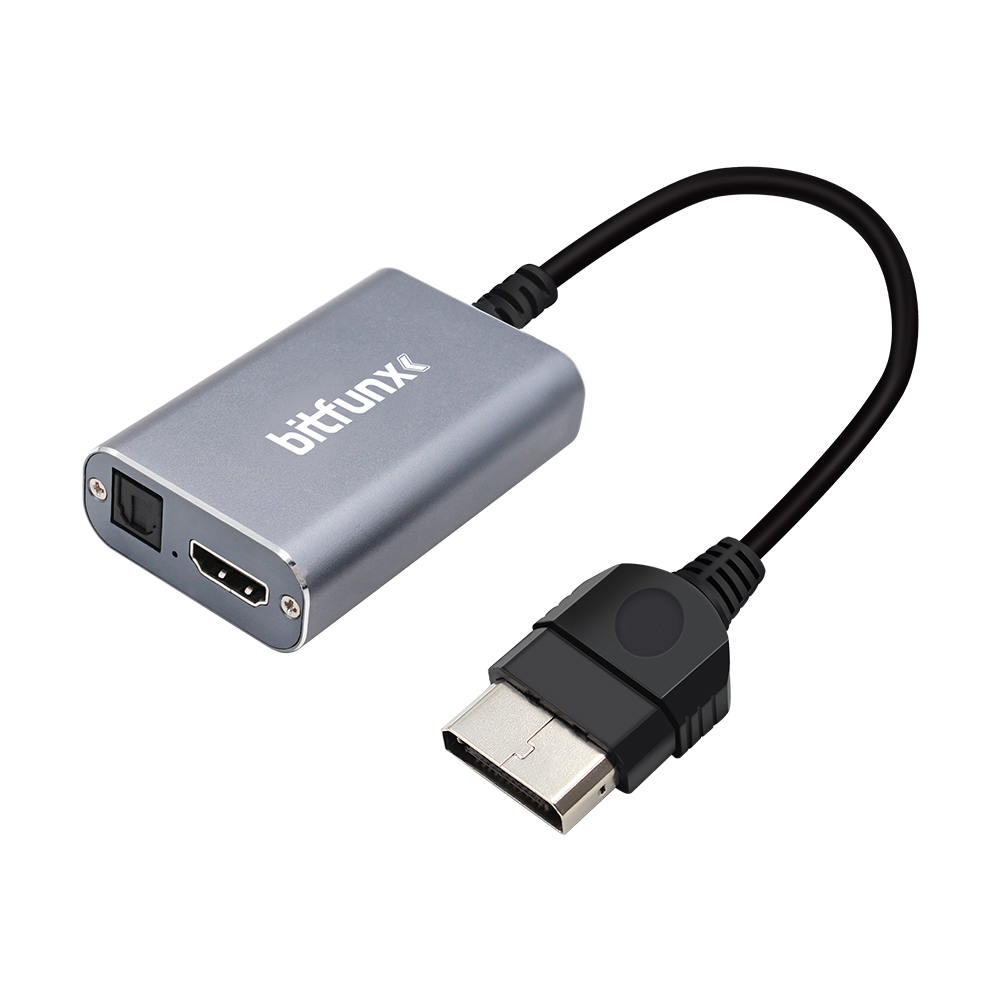

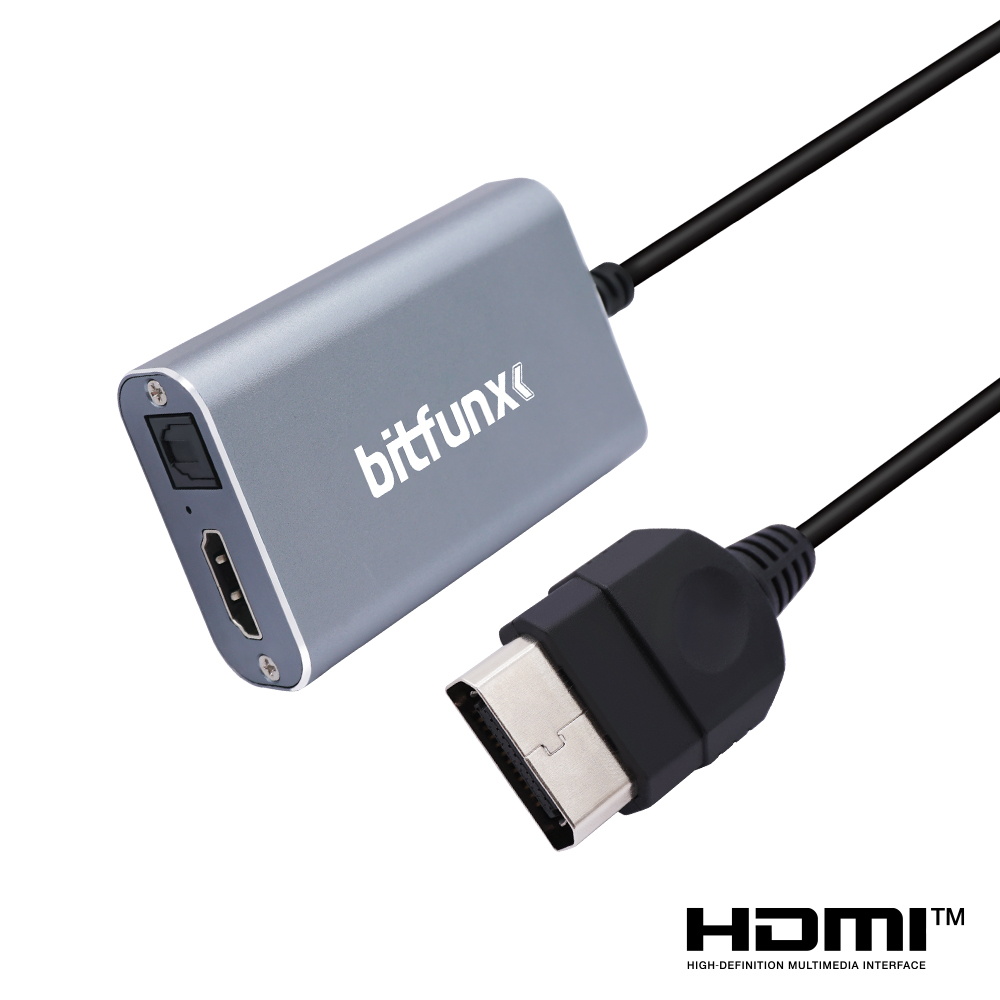

HDMI® Adapter for XBOX Classic Retro Gaming Consoles HD Cable Accepts 5.1 Dolby Digital Surround Sound

*The terms HDMI,HDMI High-Definition Multimedia Interface,HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator,Inc.

INTRODUCTION

The majority of modern televisions have connectivity via HDMI and lack some of the older inputs which retro consoles use. With theBitfunx HDMI adapter cable, you can bring your old XBOX console back to life on a newer TV and relive those classic games with a simple “Plug and Play” solution.

FEATURES

1) Video & Audio in full digital HDMI format with zero transmission loss.

2) Supports full Optical Audio, allows connections to Amplifier.

3) Works with the majority of HDMI compatible Televisions and Monitors.

4) Hassle free! Plug and play!

5) Supports all XBOX display modes – 480i, 480p, 576i, 576p, 720p, 1080i.

6) No power adapter, no messy charging cords – Just one single HDMI Cable.

SPECIFICATIONS

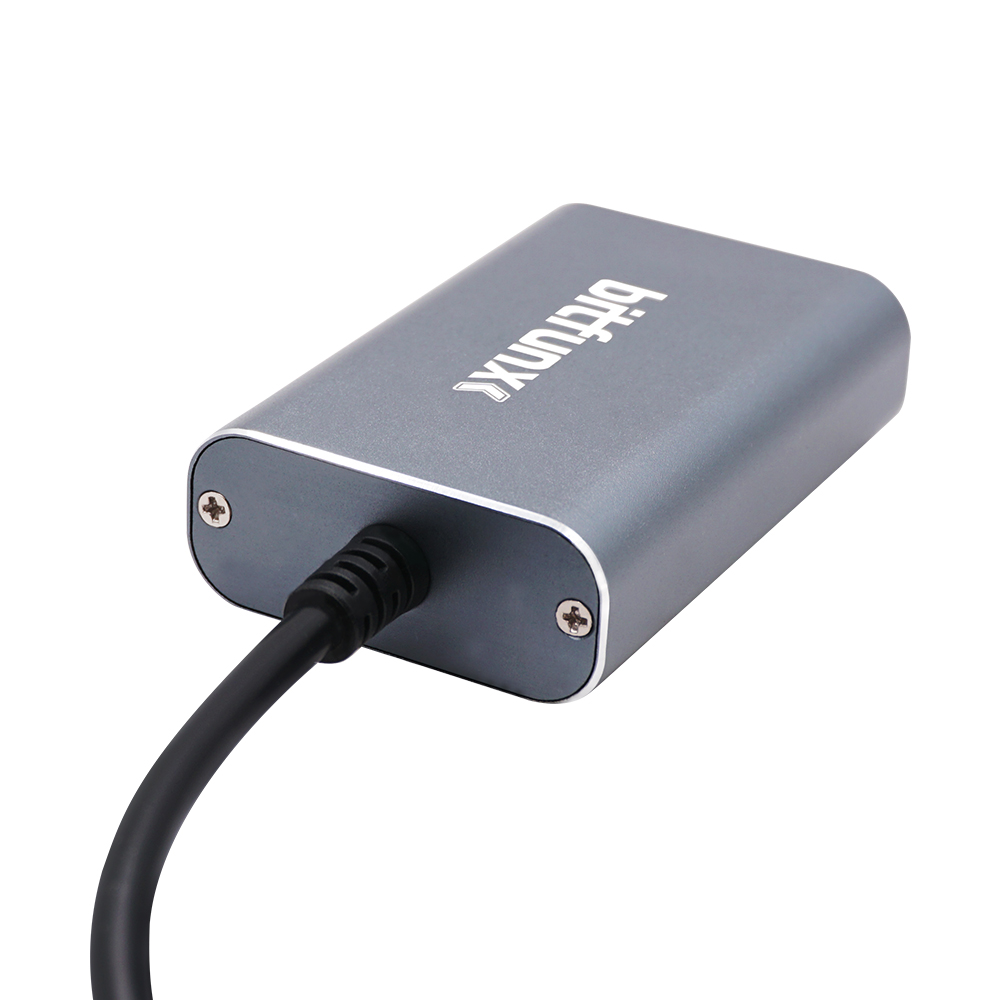

Device Dimensions: L: 68mm W: 43mm H: 18mm

Cable Length: 255mm

Weight: 75g

Power Consumption: Below 2w

Supported Video Input Mode: All XBOX display modes inc. 480i, 480p, 576i, 576p, 720p, 1080i

Supported Video Output Mode: Outputs pure digital HDMI Video/Audio.

Audio / Dolby Digital

– Supports Full Stereo Audio over HDMI

– Supports Full Dolby Digital 5.1 Surround Sound (via Optical)

– Additional Optical/TOSLINK output for connecting to a supported Amplifier for full Dolby Digital 5.1 Surround Sound.

*Please Note: For you to take advantage of 5.1 Dolby Digital Surround Sound, you must use an Optical Cable and connect it to an amplifier that is capable of processing Dolby Digital Sound.

INSTRUCTIONS

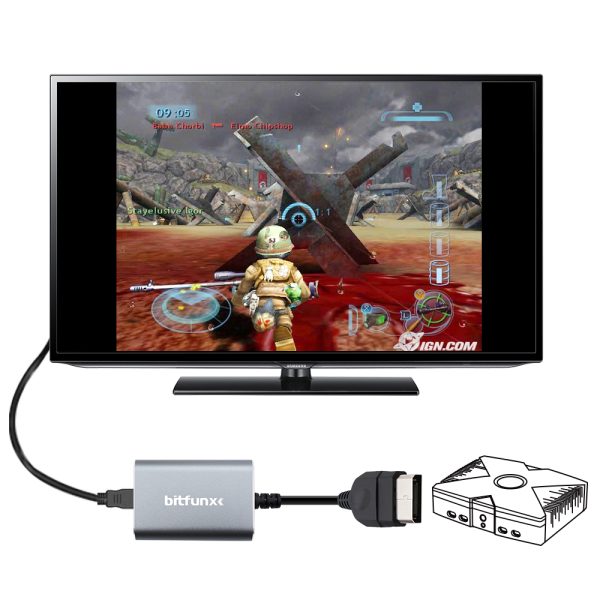

1) Remove previous XBOX A/V cable and connect Bitfunx HDMI Adapter.

2) Plug one end of your HDMI cable into the Bitfunx HDMI converter, and the other end into a free HDMI socket on your TV.

3) Power on your XBOX and TV. Make sure your TV’s A/V INPUT has been switched to the correct HDMI input where the XBOX is connected.

4) Verify that you can see the XBOX picture on your TV – The Bitfunx HDMI Adapter LED should now be Green in colour.

5) Thats it! – Our Bitfunx HDMI adapters are ‘Plug & Play’ and very simple to use.

*Please note The HDMI Adapter does not upscale or tweak the image. If you are looking for more control over your image, then please consider the OSSC (Open Source Scan Converter) by Bitfunx®.
