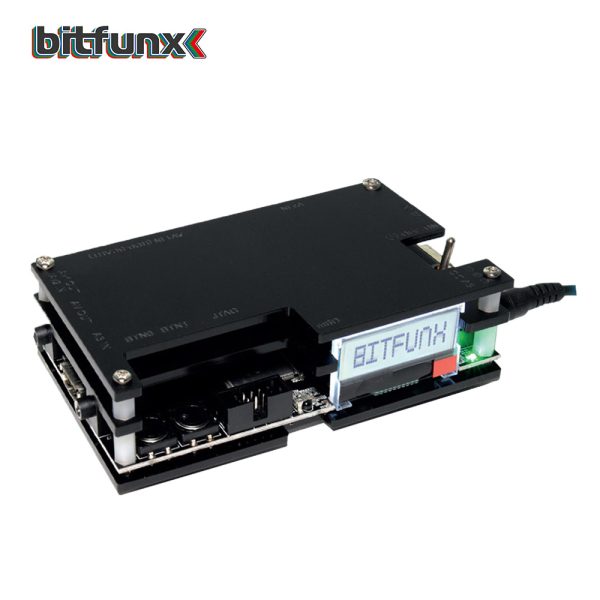

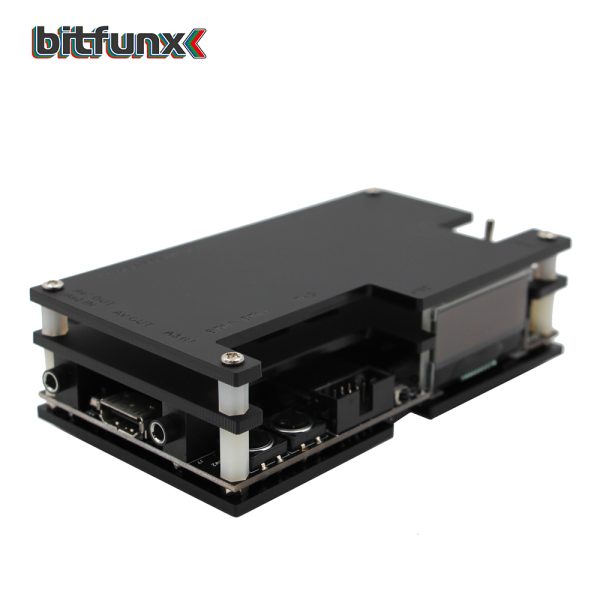

The Open Source Scan Converter is a low-latency video digitizer and scan converter designed primarily for connecting retro video game consoles and home computers to modern displays. It converts analog RGB or component video signals into a digital format, and doubles (or triples) the scanlines of a single frame if necessary to generate a valid mode for digital TVs or monitors.
If you need the A/V to HDMI-compatible converter for your game console, please chooseBitfunx RetroScaler2x A/V ConverterBitfunx RetroScaler2x A/V Converter, which is the best quality A/V box.

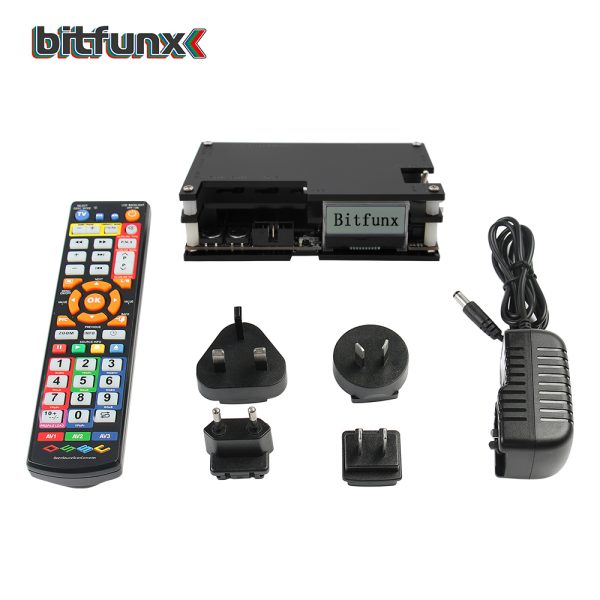

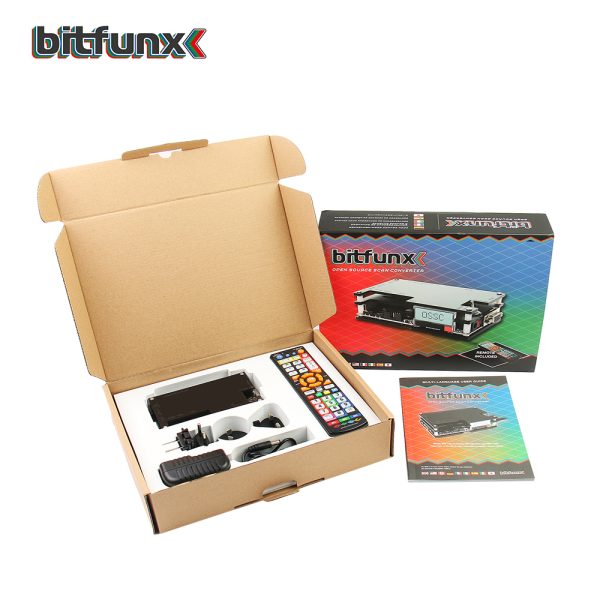

1* HDMI-compatible Converter
1* IR Remoter
1* Power Supply with 4 plug adapters(UK/ EU/ AU/ US)
1* Multi Language User Manual
Detection and digitization of various analog SDTV/EDTV/HDTV/PC modes
Line double support for 240p, 480i, 288p, 576i, 384p, 480p, 576p
Line3x/4x/5x support for 240p/288p with different sampling modes
Very low latency (less than 2 input scanlines), Don’t worry about blurry graphics, interlaced jams, and higher input lags, and no painstaking upgrades.
Fast “deinterlace” for 480i/576i and 960i/1080i
Fast recover from input video mode change (e.g. 240p<->480i)
All video processing done in RGB domain – no conversion to YCbCr
Video and sync LPF for less-than optimal input signals
Multiple inputs supporting various formats (see below)
Full-range 24-bit RGB output through DVI/HDMI-compatible
Emulated scanlines with configurable strength and position
Configurable mask for overscan area
Selectable sampling configuration for 480p input: DTV-480p or VGA 640×480
Selectable CSC configuration for YPbPr source: Rec. 601 or Rec. 70
Excellent picture and sound quality on a HDMI-compatible PC monitor or TV
-No blurry graphics, interlaced jams, and higher input lags, and no painstaking upgrades. Convert VGA to DVI /HDMI-compatible. Connect Dreamcast directly to the unit and enjoy HDMI-compatible processing for all games.
Process (line doubles) retro game with no input delay
-Support for 240p, 480i, 288p, 576i, 384p, 480p, 576p. Unlike other scalers, such as the XRGB Mini, OSSC works on a single scan line instead of one frame at a time, which means there is no input delay. Convert SCART and Component to DVI / HDMI-compatible.
Eliminates ugly deinterlacing artefacts and bad scaling
–When connects retro consoles to your TV, this product converts the image into a 480p or 720p (where compatible) image that is correctly displayed and processed. EVERY special effect, from 240p drop shadows to striped sprites, is rendered correctly.
Converts SCART and Component to HDMI-compatible
–For example, feed in a 480p component video signal from a Wii and get out a perfectly processed 480p HDMI-compatible or DVI (with a simple adapter) image. The quality is flawless!
Convert VGA to HDMI-compatible
–For example, connect a Dreamcast directly to the unit and enjoy HDMI-compatible processing of all your games, not just those that support 480p.
Convert analogue audio to digital HDMI-compatible
–Analogue audio from your retro games console will be converted to digital audio and injected into the HDMI-compatible/DVI output (requires compatible TV, processor or AV receiver. Analogue audio output is still available for setups where this is required).
Could be used in almost all over the world
-Voltage AC 110V-220V.Go with plug adapters for USA, UK, Australia and Europe.
Its user manual is in multi language. Includes English, German, French, Italian, Spanish and Japan.
Easy to use
-Plug and play. Go with very detail user manual and we provide technical support and professional customer service. Worry free to buy !

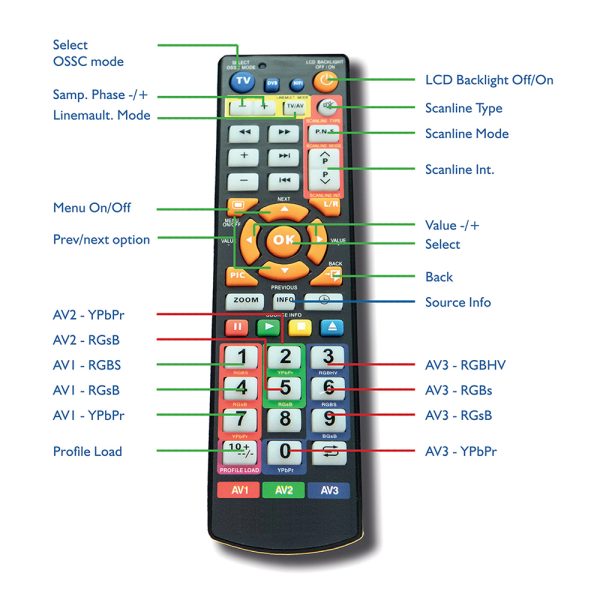

Variety settings available in the remote controller, satisfy need of game players at all levels.
Supported Inputs/Outputs resolutions
240p/288p -> 480p/576p or 720p line triple (compatible displays only)
240p/288p -> 1280×960, 1280×1152, 1080p, 1600×1200 line quadruple/quintuple (compatible displays only)
25Khz medium-res modes -> 480p
480i/576i -> 480p/576p or pass-through
480p -> pass-through or 960p line-double (compatible displays only)
all other 31khz resolutions passed through

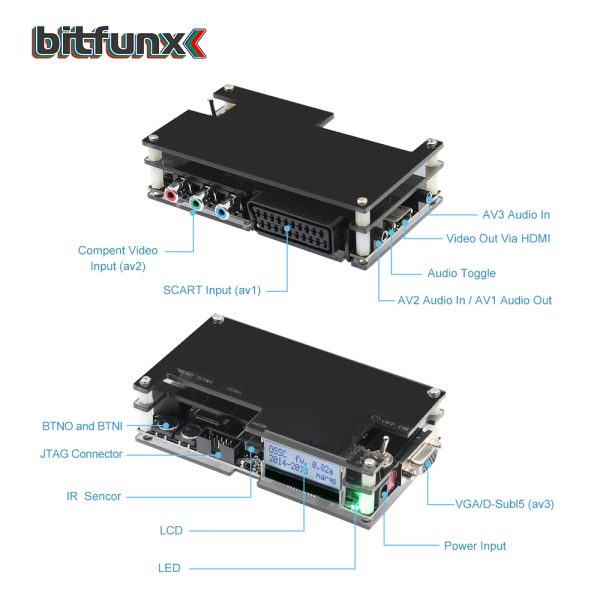

1 X SCART – Supports RGBs (clean csync, cvideo sync, luma sync), RGsB, Ypbpr
1 X Component video – Supports Ypbpr and RGsB signals
1 X D-SUB15 (VGA) – Supports RGBHV, RGBs, RGsB, Ypbpr
2 x 3.5mm analogue audio – Supports all analogue audio. Input 1 can be toggled between output (from AV1/SCART) or input
1 X HDMI-compatible or DVI-D (with adapter) (digital only,including audio). Full-range 24-bit RGB output through DVI/ HDMI-compatible
1 X Analogue audio 3.5mm (input/output toggle)
Retro home consoles
Microsoft Xbox 360
NEC PC Engine
Nintendo NES / Famicom
Nintendo Super NES / Super Famicom
Sega Genesis / Mega Drive
Sega Master System
SNK Neo Geo
Sony PlayStation 2
Sony PlayStation Portable
Atari 8-bit family
MGT Sam Coupé
Sinclair ZX Spectrum
Data East Caveman Ninja Hardware
Nintendo Playchoice 10
Sega Model 2
SNK Hal 21
SNK Neo Geo MVS
AV video and S-Video are NOT supported and require an adapter/ transcoder
For more detailed information about which kinds of TV it compatible please visit our official website or you can just contact our sale service, thanks.
