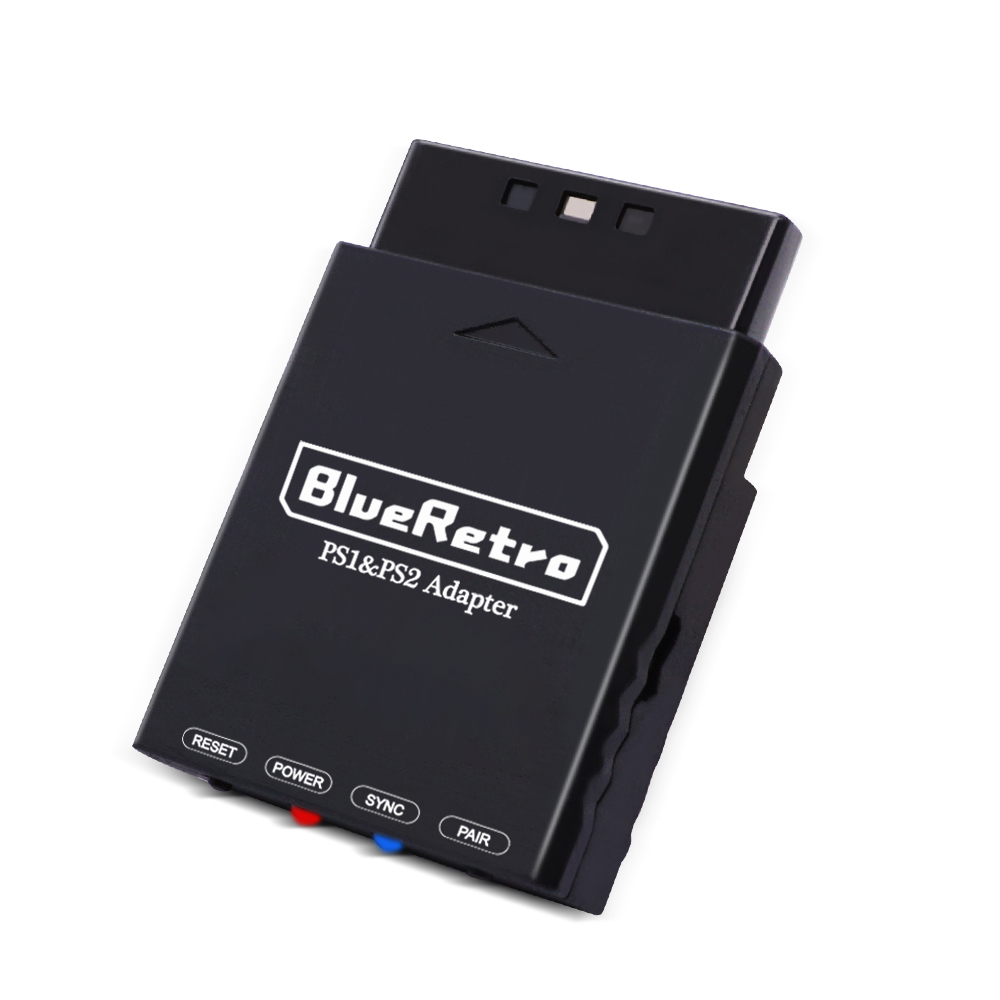

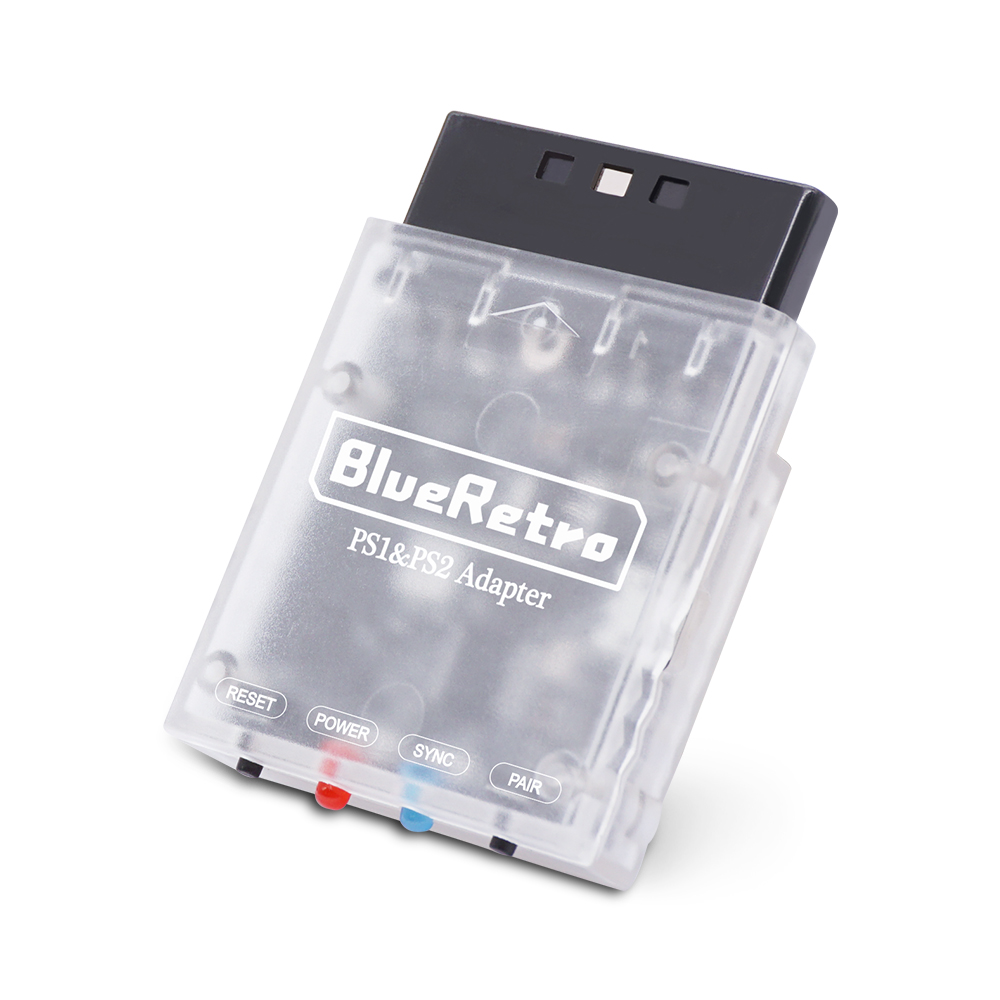

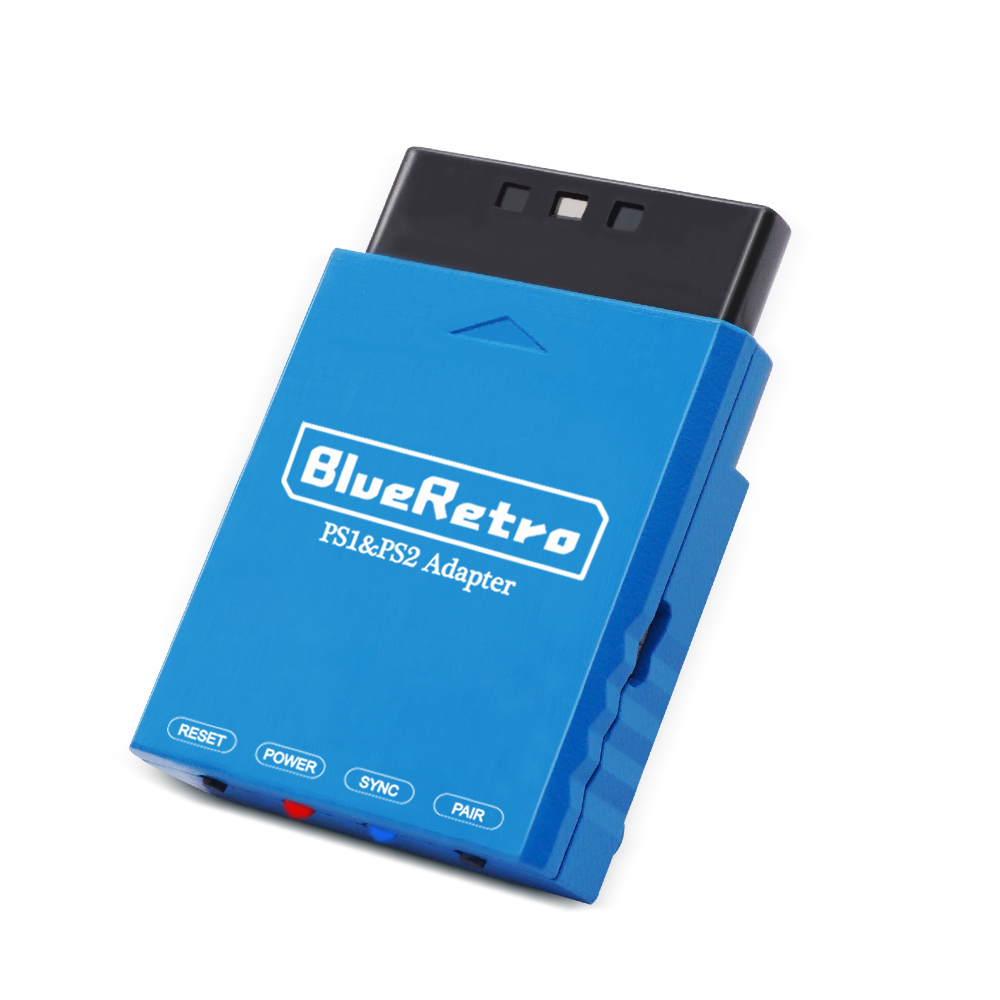

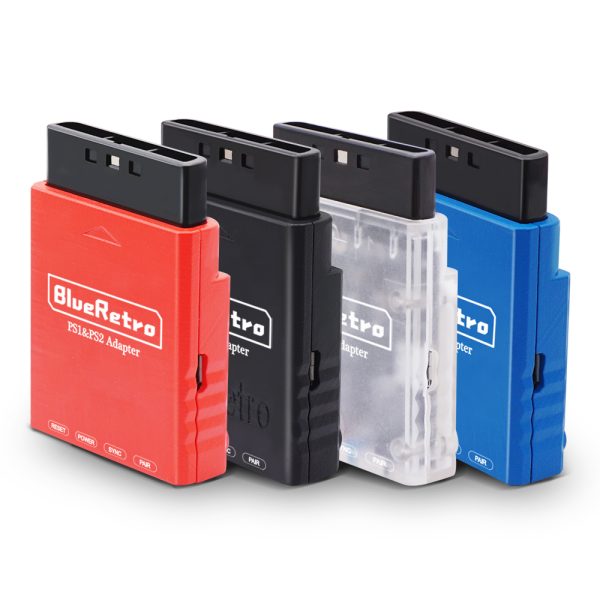

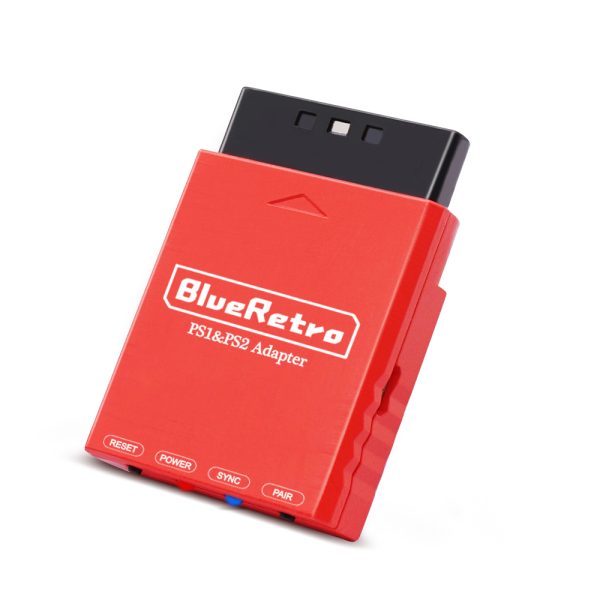

BlueRetro is a multiplayer Bluetooth controllers adapter for ps2 consoles,Open source project based on darthcloud,It’s built for the popular ESP32 chip.support Wii, Switch, PS3, PS4, PS5, Xbox One console wireless controller.
>Note:Only support connecting to one wireless controller
Feature
1) Suitable for PS1/PS2 console.
2) Support update firmware.
3) Millisecond response with almost no delay.

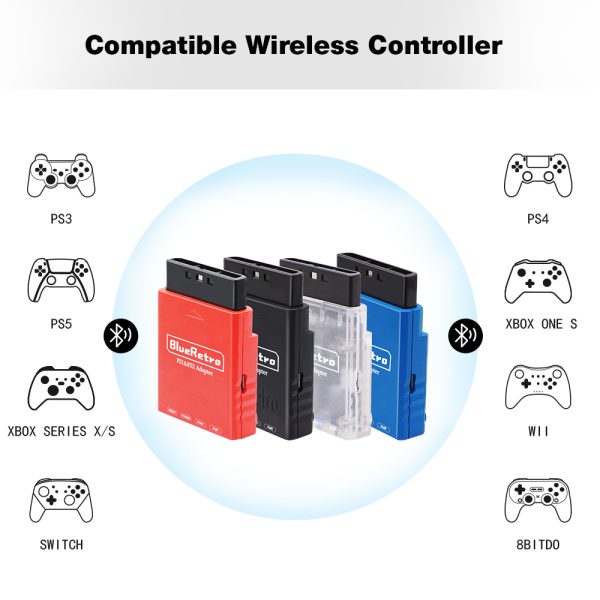

4) Compatible PS3/ps4/ps5/Xbox One S, Series X|S & Adaptive controller/Wii & WiiU Pro/Switch Pro & Joycon/8bitdo Wireless Controller.
5) Support Keyboard, trackball & mouse console accessories.
6 ) The key value of the button can be configured through the wab bluetooth port of the computer and mobile phone.

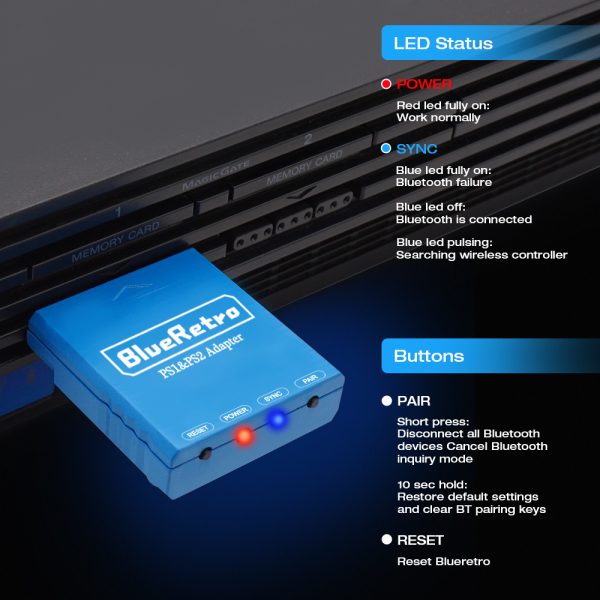

Blueretro light status
Red LED FULLY ON:Work normally
Blue LED FULLY ON: BLuetooth failure
Blue LED OFF:Bluetooth connected
Blue LED blinking:Searching Bluetooth devices
Blueretro buttons usage
- Left button(near red led): retset blueroot
- Right button(near blue led):
Short press: Disconnect all Bluetooth devices/Cancel Bluetooth inquiry mode
10 sec hold:restore default settings and clear BT pairing keys.
Pairing Bluetooth controller Guide
When BlueRetro connects to the control for the first time, it will automatically enter the bluetooth inquiry mode(Blue Led blinking),Please refer to the following guide to connect the wireless controller: Pairing Guide
Web config
Power on system and connect via Web Bluetooth at https://blueretro.io to configure adapter.configuration interface&Web-config mapping label
The config mode is only available if no controller is connected.
Supported only in Desktop or Android Chrome
FW update
For windows10 Flashing firmware: tutorial
